Client Usage Guide

EasyConnect SSH, code name ssh-vpn, provides both an intuitive graphical interface (GUI) for everyday users and a flexible command-line interface (CLI) for advanced power users.

Prerequisites

1. Download the correct app bundle for your OS from the Downloads Page.
2. Obtain SSH server credentials from your company, your own infrastructure, or another environment you are authorized to access.

---

Graphical App (Recommended) 🖥️

For legitimate remote administration, internal system access, or development workflows, the GUI app provides an out-of-the-box experience.

1. Launch the App: Open the installed application (e.g., the .dmg on macOS, or the .exe on Windows).
2. Add Profile: Click the Add Profile button to set up your connection.
   • Server: Your server's IP and SSH port (e.g., 123.45.67.89:2222).
   • Username: Your SSH username.
   • Auth Type:
     • SSH Key (Recommended): Browse to your private key file (often ~/.ssh/id_rsa).
     • Password: Type in your server password.
   • Mode:
     • SOCKS5 Proxy: Creates a lightweight local proxy at 127.0.0.1:1080 (you must configure individual apps like your browser to use this).
     • TUN Mode: Routes system traffic through a virtual network adapter for full-device managed connectivity.
3. Connect: Select the profile and tap Connect.

Note on TUN Mode Privileges TUN mode handles system-wide traffic by creating a virtual network adapter. It can also manage DNS resolution (binding to 127.0.0.1:53) so the operating system uses the intended resolver path. Because of this deep OS integration, using TUN mode requires Administrator/Root privileges on Windows, macOS, and Linux. If you don't have Admin access, use the SOCKS5 Proxy mode instead, which runs purely in user-space.

---

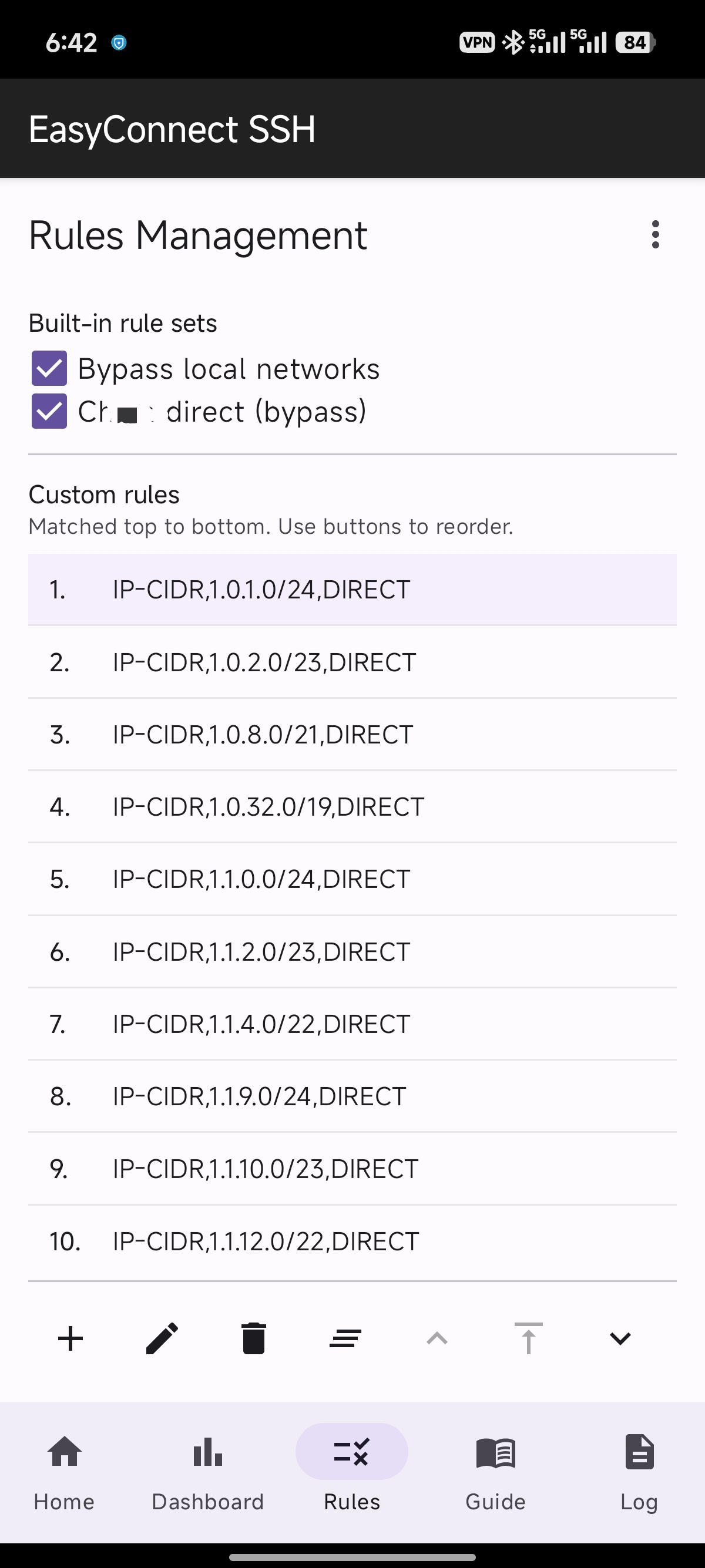

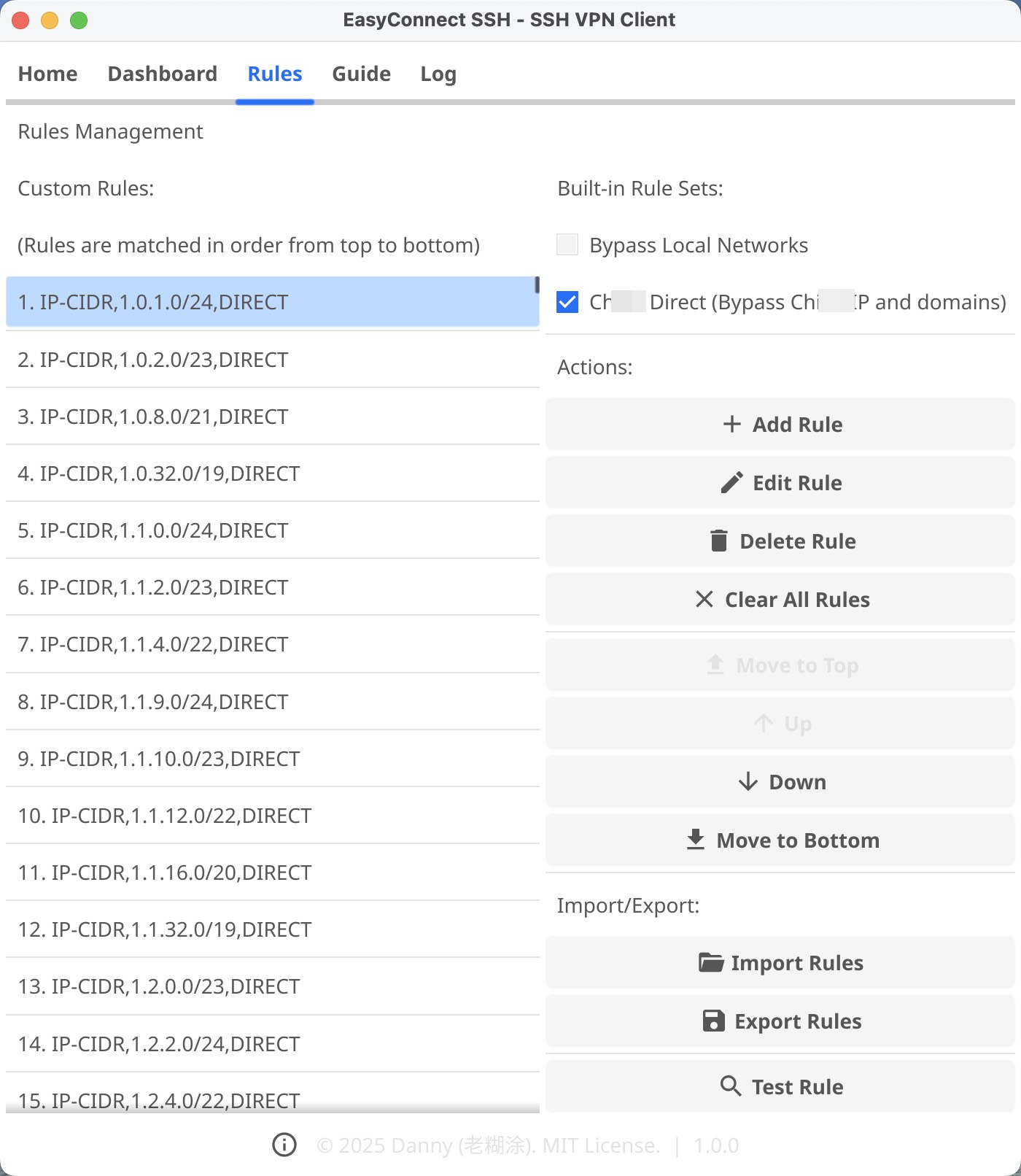

Smart Routing & Rules Engine

To minimize latency while keeping internal systems and local resources reachable, EasyConnect SSH includes a built-in split routing engine.

• Universal Compatibility: The rules engine syntax is 100% compatible with mainstream configurations. We organically support DOMAIN, DOMAIN-SUFFIX, DOMAIN-KEYWORD, and IP-CIDR rules without conversion.
• Easy Imports: You can import pre-authored rule lists directly into the client. For instance, you can keep all Private IPs or specific internal domains on DIRECT while routing authorized remote traffic through the SSH tunnel (PROXY).
• Block Intrusive Trackers: You can also inject REJECT actions to block traffic toward known advertising and telemetry servers.

---

Command-Line Interface (For Advanced Users)

If you manage servers or prefer the terminal, EasyConnect SSH provides a headless daemon CLI suitable for scripting and background services.

# Example: One-off connection overriding the host
ssh-vpn-cli client -host 123.45.67.89 -port 2222 -mode socks5

# Example: Using a saved configuration profile (e.g. "WorkServer")
ssh-vpn-cli -profile "WorkServer" client

When connected via the default SOCKS5 mode, you can pipe traffic manually:

# Using curl over the ssh-vpn proxy
curl --socks5 127.0.0.1:1080 https://ifconfig.me

For a comprehensive breakdown of all available commands, refer to the CLI Reference.
